| Item | Parameters |
| Product name | 940nm Laser Lidar Filter |
| Model number | BP940 |

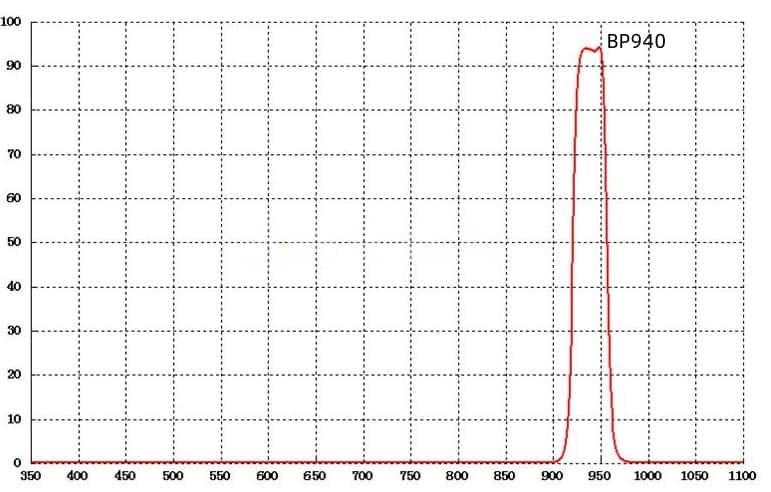

| CWL | 940±5nm |
| AOI | 0° |
| FWHM | 10-40nm |
| Transmittance | T＞90% Customized |
| Blocking Rate | >OD3-OD6 UV-NIR |
| Blocking Band | 200nm-2000nm Customized |
| Raw material | B270 D263T JGS1 or other optical glass |
| Surface quality（S/D） | 60/40 or better |
| Dimension | Customized |
| Thickness | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
Tags: optical filter , narrow band optical filter , Long Pass Filter , Short Pass Filter , Band Pass Filter , UV IR Cut Off , 532nm notch filter , custom bandpass filter , 940nm bandpass filter , ir bandpass filter , uv band pass filter , infrared bandpass filters
