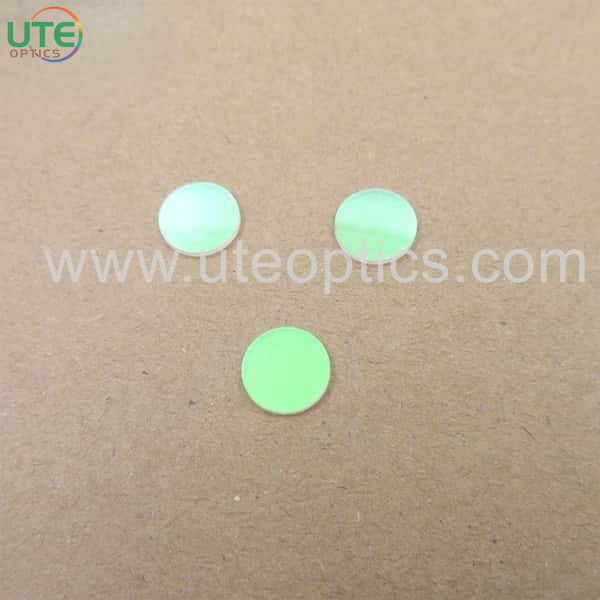

NBP532nm narrow bandpass filter
532nm filter is one of the fiter bands selected by many optical solutions, The light emitted by 532nm narrow band filter in laselapplication is mainly green laser. At the same time, some lasers will choose 532m filter as the second harmonic processing filterThe application fields of 532nm narrow band pass filter are atmospheric particle detection, laser equipment, optical identification, biochemical instrument, optical measuring instrument, enzyme labeling instrument, biometric, infrared medicalinstrument, fluorescence analyzer, medical detection equipment, etc.
| Item | Parameters |
| Product name | NBP532nm narrow bandpass filter |
| Model number | NBP532nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |

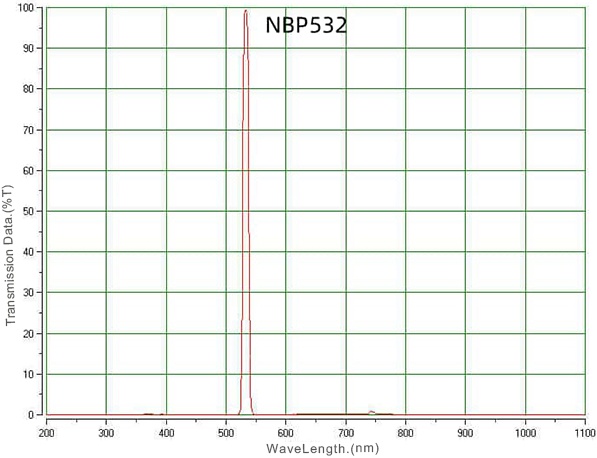

| Centralwavelength(CWL) | 532±5nm |
| FWHM | 20±3nm |
| Transmittance | T＞90%@532±5nm |
| Cut off rate: | OD4 200-1100nm |
| Raw material | BK7 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| Dimension | D5.5x1.58mm D6x1mm D10x1.5mm D13.5x1mm D15x1mm D17.5x1mm D18x1mm D22x1.6mm D25.4x1mm D28x1mm D30x1.1mm D34x1mm D39x1.6mm D50x2.2mm 4x4x1mm 5x5x1mm 10x4.5x1mm 8x8x0.55mm |
