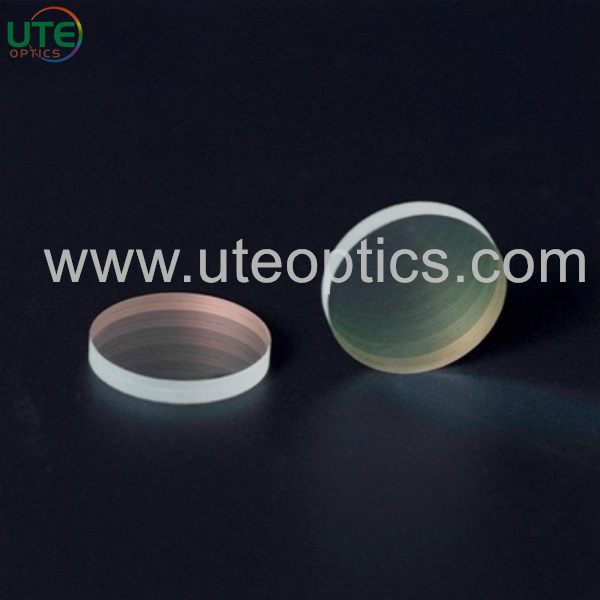

NBP1064nm narrow bandpass filter
1064nm narrow-band filter is one of the most widely used optical band filters in the laser industry. As a classic interference filter, for example, a 1.06 micron laser passes through a frequency doubling crystal filter and becomes a 0.532 micron green light. The frequency doubling filter expands the wave band of the laser and can obtain a shorter wavelength laser.
| Item | Parameters |
| Product name | NBP1064nm narrow bandpass filter |
| Model number | NBP1064nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |
| Centralwavelength(CWL) | 1064±5nm |
| FWHM | 2.5±0.5nm |
| Transmittance | T＞90%@1064±5/10nm |
| Cut off rate: | OD4@400-600nm OD5@600-1100nm |
| Raw material | BK7 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| Dimension | D25.4x2mm D25.4x3mm D10x3mm D12.7x3mm D32x2mm 80.3x80.3x1.0mm 60x60x2.0mm |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
