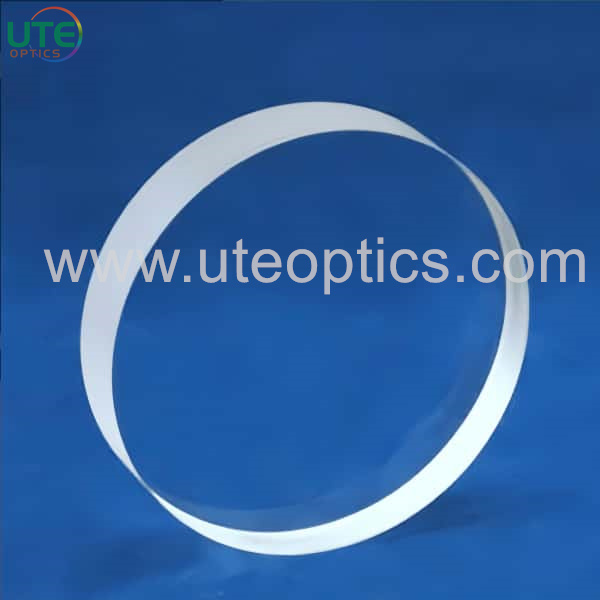

283nm Notch Optical Filter
The 283nm Notch Optical Filter is a high-performance band-rejection filter designed to block 283nm ultraviolet light with ultra-high precision. Featuring an optical density (OD) of >6 at the notch wavelength, it ensures >90% transmission across a broad spectrum (250-1200nm), minimizing energy loss. Ideal for laser-based Raman spectroscopy, fluorescence imaging, and UV-sensitive medical systems, this filter employs hard-coated multilayer dielectric technology for durability and high laser damage threshold (up to 1J/cm²). Customizable bandwidth (±5nm to ±20nm) and substrate options (fused silica/glass) are available for specialized applications.
| Item | Parameters |
| Product name | 283nm Notch Optical Filter |
| Model number | Notch283 |
| Transmitted Band | 250nm&320nm-700nm |
| Tavg | T＞90% |
| Laser Wavelength | 283nm |
| Notch Bandwidth | 10nm |
| Blocking Rate | OD＞6 |
| Raw material | BK7 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| AOI | 0±3 degrees |
| Dimension | Customized |
| Thickness | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
