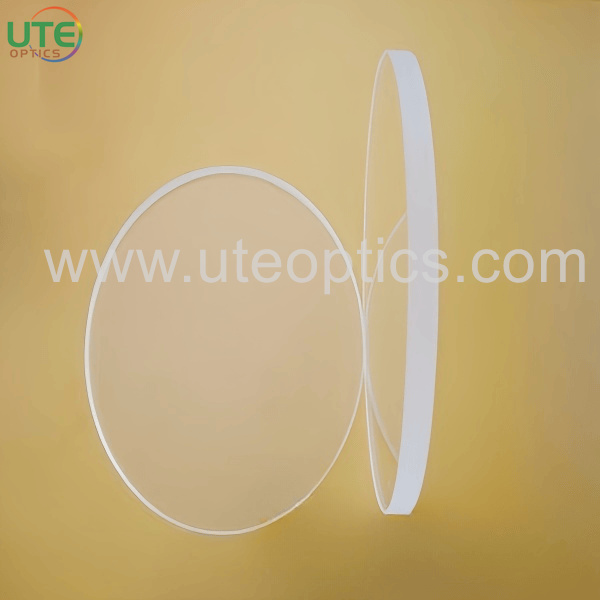

308nm Notch Optical Filter
The 308nm Notch Optical Filter is engineered for precision applications requiring targeted UV light suppression. With >90% transmittance across 250-1200nm and OD>6 blocking at 308nm±5nm, it excels in medical excimer laser systems (e.g., 308nm XeCl lasers for psoriasis and vitiligo therapy) by isolating therapeutic wavelengths while protecting sensitive detectors .Ideal for Raman spectroscopy and industrial UV-sensitive instruments, its hard-coated dielectric layers withstand high-power laser exposure (up to 1J/cm²).Customizable bandwidths (±5nm-±20nm) and fused silica substrates ensure compatibility with diverse optical configurations.
| Item | Parameters |
| Product name | 308nm Notch Optical Filter |
| Model number | Notch308 |

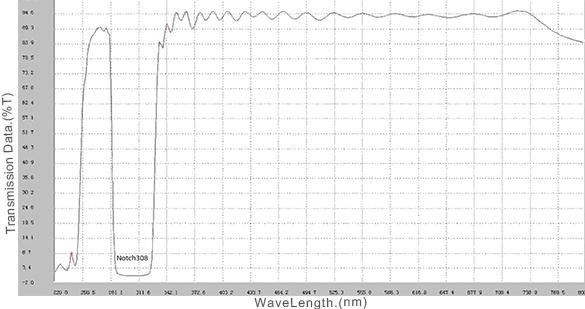

| Transmitted Band | 260nm-275nm&340nm-700nm |
| Tavg | T＞90% |
| Laser Wavelength | 308nm |
| Notch Bandwidth | 10nm |
| Blocking Rate | OD＞6 |
| Raw material | BK7 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| AOI | 0±3 degrees |
| Dimension | Customized |
| Thickness | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
