448nm Notch Optical Filter
The 448nm Notch Optical Filter is designed to selectively block light around 448nm with high optical density (OD4-OD6) while transmitting other wavelengths at >90% efficiency. Utilizing advanced dielectric coating technology, it ensures minimal signal distortion and enhanced signal-to-noise ratio. Key applications include Raman spectroscopy (blocking pump lasers for scattering detection), biomedical imaging (eliminating fluorescence noise), and laser safety systems (protecting optical components). Customizable parameters such as angle of incidence, bandwidth, and multi-notch configurations are available for complex integration

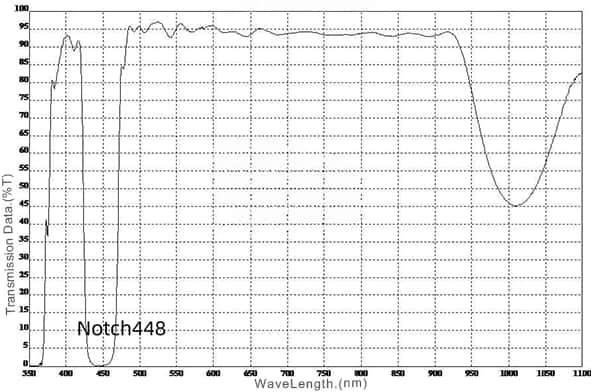

| Item | Parameters |
| Product name | 448nm Notch Optical Filter |
| Model number | Notch448 |
| Transmitted Band | 400nm-440nm&460nm-700nm |
| Tavg | T＞90% |
| Laser Wavelength | 448nm |
| Notch Bandwidth | 10nm |
| Blocking Rate | OD＞4 |
| Raw material | BK7 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| AOI | 0±3 degrees |
| Dimension | Customized |
| Thickness | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
Tags: optical filter , narrow band optical filter , Long Pass Filter , Short Pass Filter , Band Pass Filter , UV IR Cut Off , 532nm notch filter , custom bandpass filter , 940nm bandpass filter , ir bandpass filter , uv band pass filter , infrared bandpass filters
