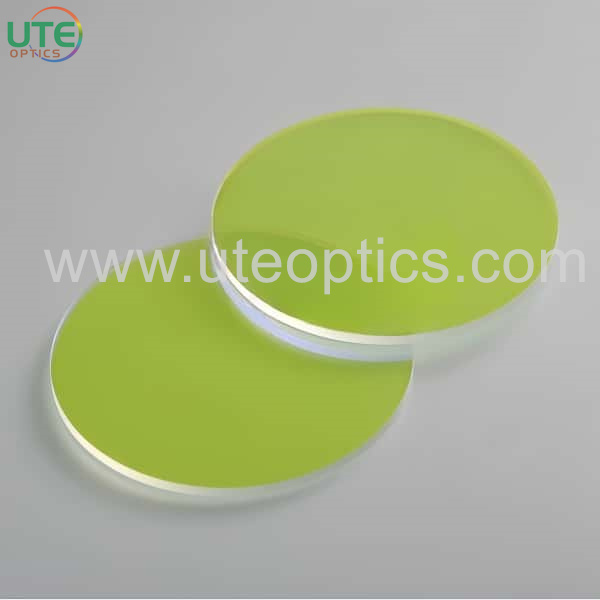

532nm Notch Optical Filter
532nm negative filter. The main feature of this product is that it can attenuate the dazzling green laser emitted by the laser and the 1064nm frequency-doubled laser to protect the eyes of the workers, and clearly see the objects with specific different color spectral characteristics; it can protect the eyes of the workers from being damaged by the dazzling green laser emitted by the green laser and the 1064nm frequency-doubled laser, attenuate the strong green laser, and clearly see the objects with specific different color spectral characteristics.
| Item | Parameters |
| Product name | 532nm Notch Optical Filter |
| Model number | Notch532 |

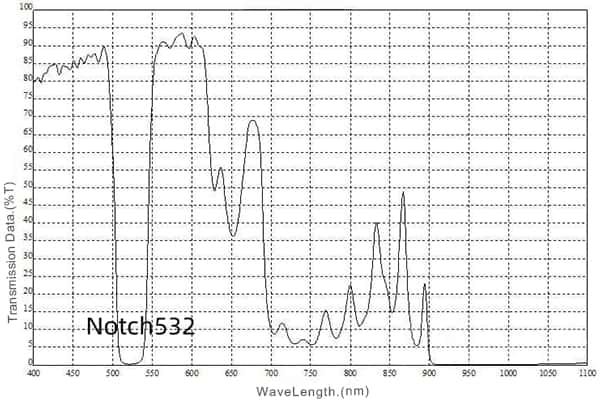

| Transmitted Band | 400nm-495nm&550nm-950nm |
| Tavg | T＞90% |
| Laser Wavelength | 532nm |
| Notch Bandwidth | 10nm |
| Blocking Rate | OD＞3 |
| Raw material | BK7 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| AOI | 0±3 degrees |
| Dimension | Customized |
| Thickness | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
