JB400 JB420 JB450 JB470 JB490 JB510 Golden Yellow Cut Off Filter Glass Filter
The JB series Golden Yellow Cut Off Filter is a high-performance long pass filter designed to block specific short wavelength light while allowing longer wavelength light to pass through. These filters feature high transmission efficiency and excellent optical performance. Available in various sizes, including square and round configurations, they are suitable for applications in beauty, laser protection, surveying and mapping optical instruments, machine vision devices, optical detection instruments, and more.
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| JB400 | GG400 | L-40 |
| JB420 | GG420 | L-42 |
| JB450 | GG455 | Y-44 |
| JB470 | GG475 | Y-46 |
| JB490 | GG495 | Y-48 |
| JB510 | GG515 | Y-50 |
Parameter of JB400 JB420 JB450 JB470 JB490 JB510 Golden Yellow Cut Off Filter Glass Filter | |
| Title | JB400 JB420 JB450 JB470 JB490 JB510 Golden Yellow Cut Off Filter Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | JB400 JB420 JB450 JB470 JB490 JB510 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm or customized |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm or customized |
| Chamfer | 0.25x45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface accuracy | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if high cost |

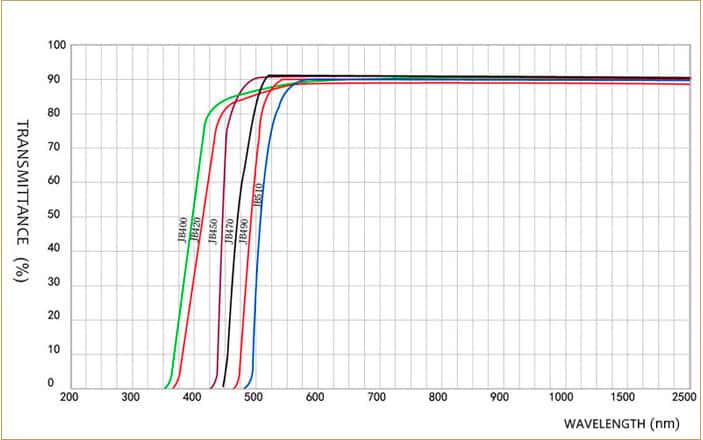

Golden Yellow Cut Off Filter Glass Filter Spectral Curve

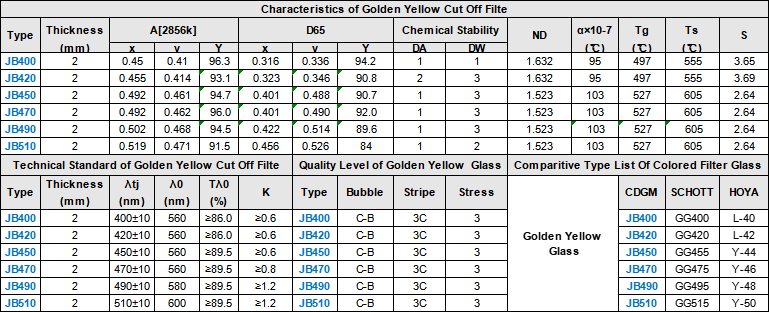

Characteristics Technical Standard Quality Level of Golden Yellow Cut Off Filter Glass Filter
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
