HWB760 HWB780 HWB800 HWB830 HWB850 HWB930 Infrared Cut Off Optical Glass Filter

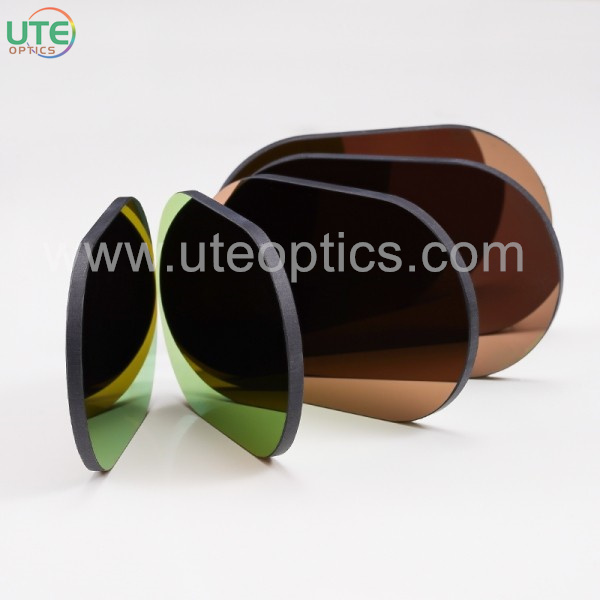

Colored glass filters (HWB760, HWB780, HWB800, HWB830, HWB850, HWB930) are high-precision optical components made from premium colored glass. They feature high transmittance and excellent spectral selectivity, making them ideal for laser protection, industrial measurement, and environmental monitoring applications. Key features include:High Transmittance: Ensures efficient light signal transmission.Precision Dimensions: Standard size of 50 x 50mm with thickness options of 1, 2, or 3mm.Surface Quality: High surface finish with protective chamfer design for durability.
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| HWB760 | IR-76 | |
| HWB780 | RG780 | |
| HWB800 | IR-80 | |
| HWB830 | RG830 | IR-83 |
| HWB850 | IR-85 | |
| HWB930 | ||
Parameter of HWB760 HWB780 HWB800 HWB830 HWB850 HWB930 Infrared Cut Off Optical Glass Filter | |
| Title | HWB760 HWB780 HWB800 HWB830 HWB850 HWB930 Infrared Cut Off Optical Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | HWB760 HWB780 HWB800 HWB830 HWB850 HWB930 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm or customized |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm or customized |
| Chamfer | 0.25x45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface accuracy | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if high cost |
HWB760 HWB780 HWB800 HWB830 HWB850 HWB930 Infrared Cut Off Filter Glass Spectral Curve
Characteristics Technical Standard Quality Level of Infrared Cut Off Optical Glass Filter
