ZB1 ZB2 ZB3 Violet Selective Absorption Optical Glass Filter

ZB1 ZB2 ZB3 Violet Selective Absorption Optical Glass Filter

made of high-quality optical glass, precisely manufactured to selectively absorb violet wavelengths. Featuring high transmittance, low refractive index, and high uniformity, they are ideal for optical instruments, medical equipment, and environmental monitoring. Customizable in size and coating, these filters meet diverse application needs. Using high-precision processing technology, we ensure surface quality and figure accuracy, offering reliable spectral selection solutions for your optical systems.

Comparitive Type List Of Colored Filter Glass
CDGMSCHOTTHOYA
ZB1
B-390
ZB2BG3
ZB3
B-370
Parameter of ZB1 ZB2 ZB3 Violet Selective Absorption Optical Glass Filter
TitleZB1 ZB2 ZB3 Violet Selective Absorption Optical Glass Filter
Place of originJiangsu, China
CustomizedOEM ODM
Model numberZB1 ZB2 ZB3
Substrate MaterialOptical filter glass
DimensionCustomized
Dimension Tolerance0.0/-0.1mm
Thickness2mm 3mm or customized
Thickness tolerance0/-0.05mm
Chamfer0.25x45 degree or as needed
TemperedHarden as requirement
CoatingUncoated or Coated as requirement
TransmittanceT>90%
Surface quality S/D60/40 or better
Surfaceλ/4 or higher
ApplicationOptical Area,optical instruments,stage light,gobo light
SampleIn stock filters mostly provide for free 1-2pcs or charged if high cost

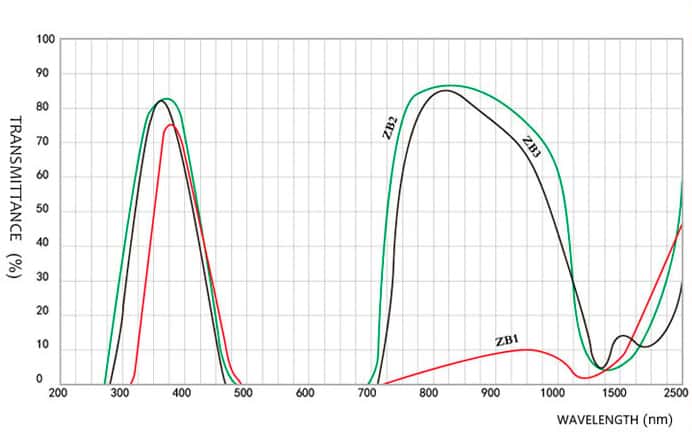

Violet Selective Absorption Optical Glass Filter Violet Glass Filter Spectral Curve.jpg

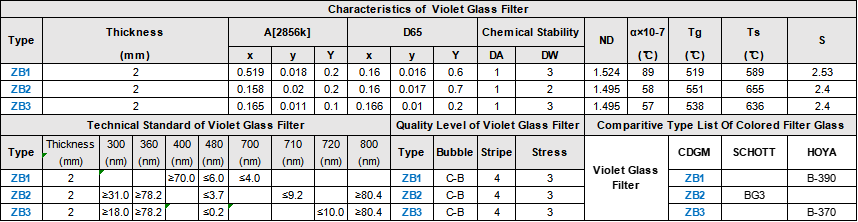

Characteristics Technical Standard Quality Level of Violet Selective Absorption Optical Glass Filter

Characteristics Technical Standard Quality Level of Violet Selective Absorption Optical Glass Filter .png
