QB BG38 BG39 Blue Cyan Selective Absorption Optical Glass Filter
QB1-QB29 and BG38 BG39 series cyan selective absorption optical glass filters, made of high-quality optical glass and precision manufacturing, selectively absorb specific wavelengths. Featuring high transmittance, low refractive index, and high uniformity, they're ideal for optical instruments, medical equipment, and environmental monitoring. Customizable in size and coating, these filters meet diverse application needs. Using high-precision processing, we ensure surface quality and figure accuracy, offering reliable spectral selection solutions for optical systems.
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| QB1 | ||
| QB2 | B-410 | |
| QB3 | ||
| QB4 | ||
| QB5 | B-440 | |
| QB9 | ||
| QB10 | ||
| QB11 | BG14 | |
| QB12 | B-460 | |
| QB13 | ||
| QB16 | ||
| QB17 | ||
| QB18 | ||
| QB19 | ||
| QB21 | BG38 | |
| QB23 | BG7 | B-480 |
| QB24 | ||
| QB26 | BG18 | |
| QB29 | BG25 | B-380 |
| BG39 | ||
| BG40 | ||
Parameter of QB1 QB2 QB3 QB4 QB5 QB9 QB10 QB11 QB12 QB13 QB16 QB17 QB18 QB19 QB21 QB23 QB24 QB26 QB29 BG38 BG39 Blue Cyan Selective Absorption Optical GlassFilter | |
| Title | QB BG38 BG39 Blue Cyan Selective Absorption Optical Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | QB BG38 BG39 Blue Cyan Selective Absorption Optical Glass Filter |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm |
| Chamfer | 0.25*45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if high cost |
Blue Cyan Selective Absorption Optical Glass Filter

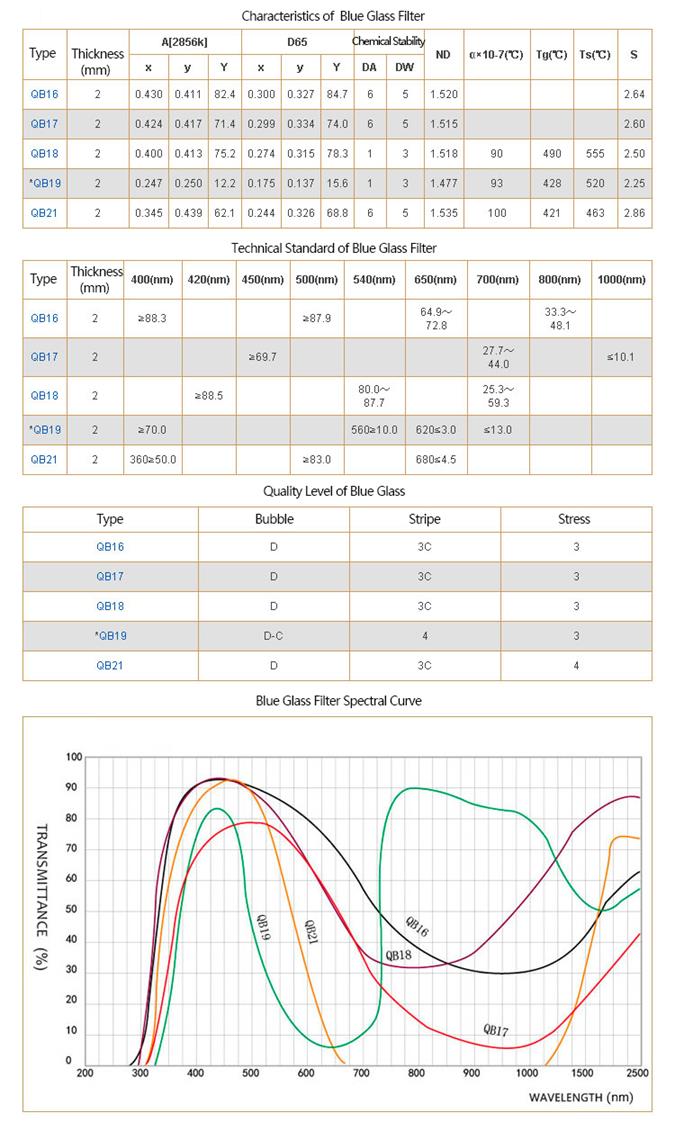

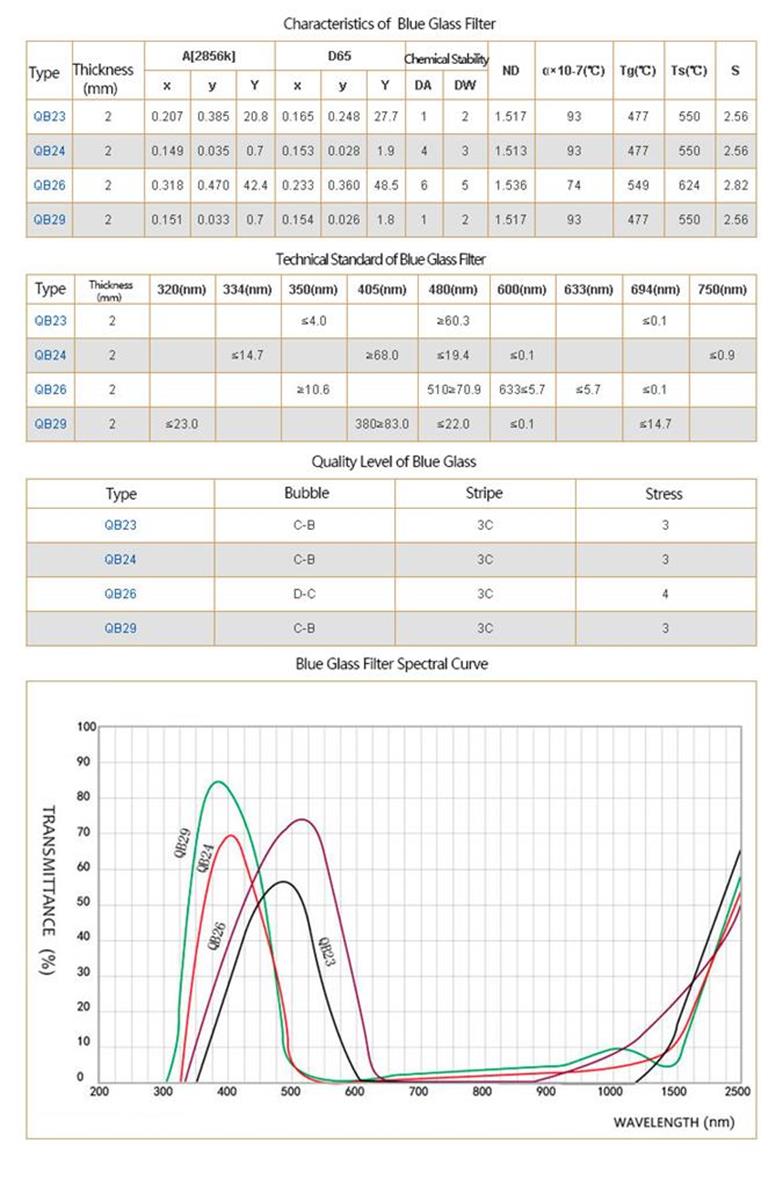

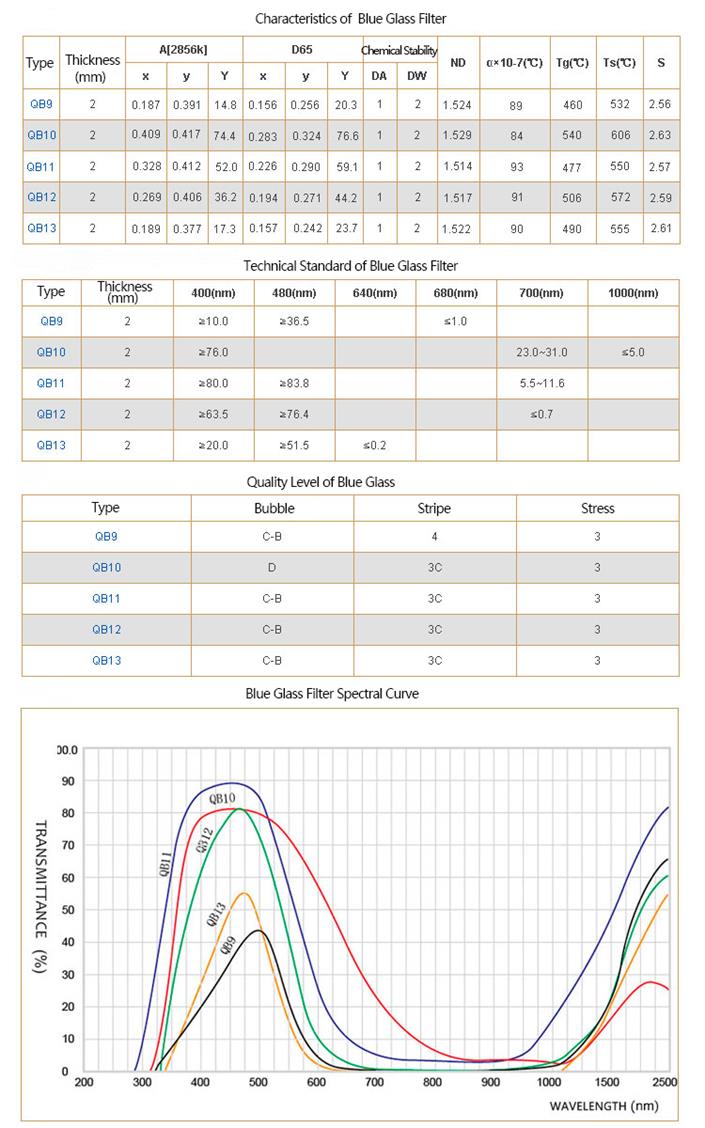

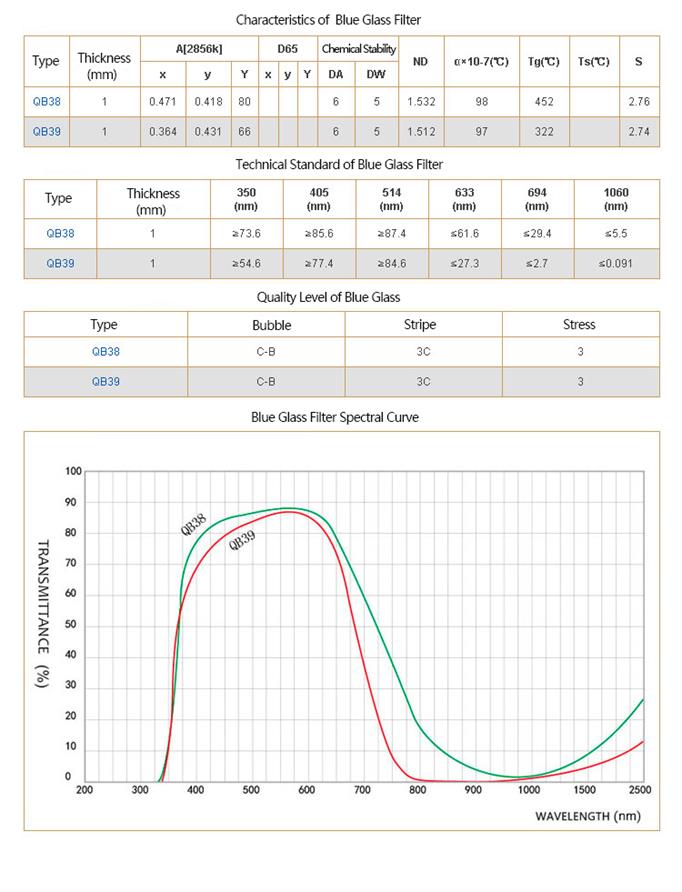

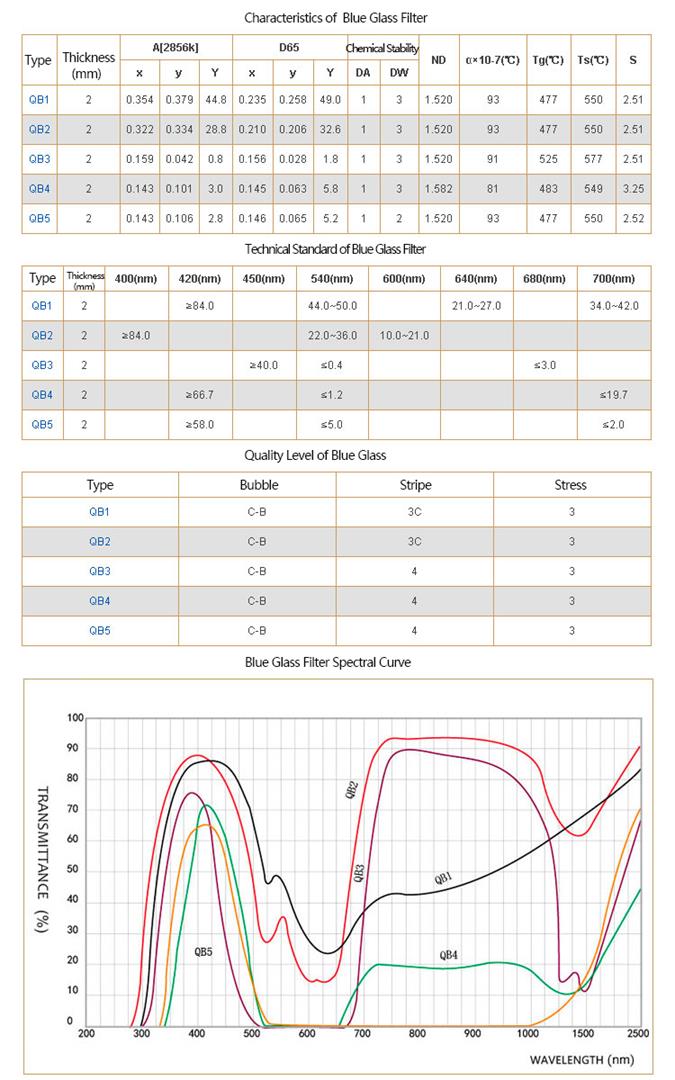

Characteristics Technical Standard Quality Level of Blue Cyan Selective Absorption Optical Glass Filter
