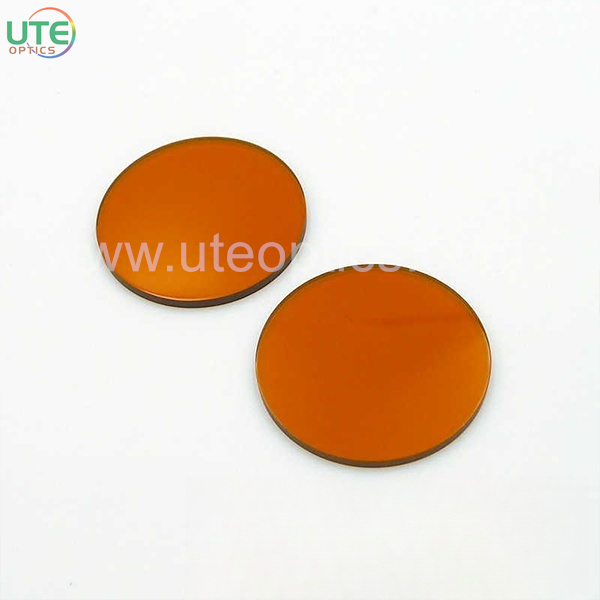

CB1 CB2 Orange Selective Absorption Optical Glass Filter
The CB1 CB2 Orange Selective Absorption Optical Glass Filter is designed for precise spectral control. This filter boasts high transmittance and excellent durability, making it suitable for research, industrial, and commercial applications. Its unique selective absorption properties effectively filter specific wavelengths of light, ensuring high-quality optical performance. Customization services are available upon request to meet your specific needs.
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| CB1 | ||
| CB2 | ||
Parameter of CB1 CB2 Orange Selective Absorption Optical Glass Filter | |
| Product name | CB1 CB2 Orange Selective Absorption Optical Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | CB1 CB2 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm |
| Chamfer | 0.25*45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if high cost |
Orange Selective Absorption Optical Glass Filter

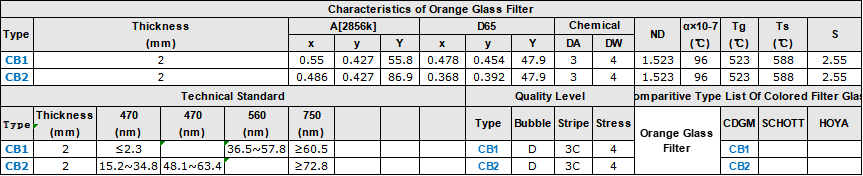

Characteristics Technical Standard Quality Level of Orange Selective Absorption Optical Glass Filter
