HB1 HB3 HB5 HB6 Red Selective Absorption Optical Glass Filter
Crafted with precision optical glass to block 500-600nm stray light while achieving >90% transmittance in 610-750nm range, ensuring high contrast and color purity. Ideal for laser systems, fluorescence analysis, semiconductor inspection, and medical imaging.
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| HB1 | ||
| HB3 | RG6 | |
| HB5 | ||
| HB6 | RM-86 | |
Parameter of HB1 HB3 HB5 HB6 Red Selective Absorption Optical Glass Filter | |
| Product name | HB1 HB3 HB5 HB6 Red Selective Absorption Optical Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | HB1 HB3 HB5 HB6 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm |
| Chamfer | 0.25x45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if high cost |
Red Selective Absorption Optical Glass Filter

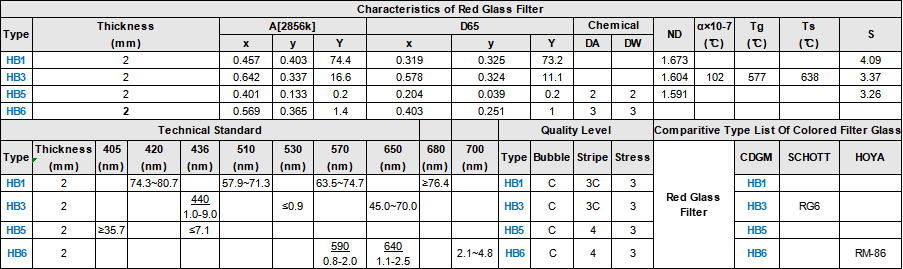

Characteristics Technical Standard Quality Level of Red Selective Absorption Optical Glass Filter
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
