FB1 FB3 Protective Optical Glass Filter

FB1 and FB3 Colored Glass Filters are selective absorption optical filters, widely used in spectrometers, photography, and scientific experiments. FB1 is lighter in color, while FB3 is darker, both in dark olive green. They feature high transmittance and high blocking, effectively filtering specific light wavelengths. Compared to dielectric filters, colored glass filters offer a more cost-effective solution and can easily cover a wide wavelength range. Our products, made from high-quality optical glass and precision-engineered, ensure excellent optical performance and durability.


Comparitive Type List Of Colored Filter Glass
CDGMSCHOTTHOYA
FB1

FB3

Parameter of FB1 FB3 Protective Optical Glass Filter

Product name

FB1 FB3 Protective Optical Glass Filter

Place of originJiangsu, China
CustomizedOEM ODM
Model numberFB1 FB3
Substrate MaterialOptical filter glass
DimensionCustomized
Dimension Tolerance0.0/-0.1mm
Thickness2mm 3mm or customized
Thickness tolerance0/-0.05mm
Chamfer0.25x45 degree or as needed
TemperedHarden as requirement
CoatingUncoated or Coated as requirement
TransmittanceT>90%
Surface quality S/D60/40 or better
Surfaceλ/4 or higher
ApplicationOptical Area,optical instruments,stage light,gobo light
SampleIn stock filters mostly provide for free 1-2pcs or charged if high cost

Protective Optical Glass Filter

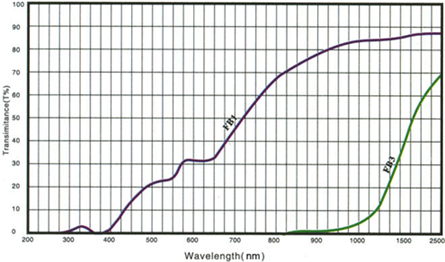

Protective Glass Spectral Curve.png

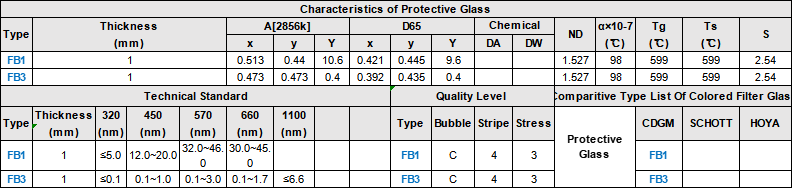

Characteristics Technical Standard Quality Level of Protective Selective Absorption Optical Glass Filter

 Characteristics Technical Standard Quality Level of Protective Selective Absorption Optical .png
