DBT400 DBT435 DBT470 DBT500 DBT530 DBT545 DBT560 DBT600 DBT660 DBT700 DBT720 DBT740 Band Pass Optical Glass Filter
DBT Series Band Pass Optical Glass Filters are specialized components designed to selectively transmit specific wavelength ranges while blocking other wavelengths. These filters are widely used in applications such as spectroscopy, laser technology, fluorescence microscopy, communication systems, and imaging devices. Operating on principles of interference and absorption, these filters achieve high transmittance within a defined wavelength range while effectively blocking unwanted wavelengths. The DBT series is characterized by narrow bandwidths and high precision, making them ideal for high-resolution optical systems. Made from high-quality optical glass and precision-engineered, our products ensure excellent optical performance and durability. Custom processing is available to meet specific application requirements, including adjustments to size, shape, and surface treatment.
| Parameter of DBT400 DBT435 DBT470 DBT500 DBT530 DBT545 DBT560 DBT600 DBT660 DBT700 DBT720 DBT740 Band Pass Optical Glass Filter | |
| Product name | DBT400 DBT435 DBT470 DBT500 DBT530 DBT545 DBT560 DBT600 DBT660 DBT700 DBT720 DBT740 |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | DBT400 DBT435 DBT470 DBT500 DBT530 DBT545 DBT560 DBT600 DBT660 DBT700 DBT720 DBT740 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm |
| Chamfer | 0.25x45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if high cost |

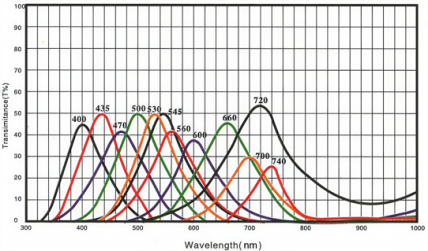

Band Pass Selective Absorption Optical Glass Filter Spectral Curve

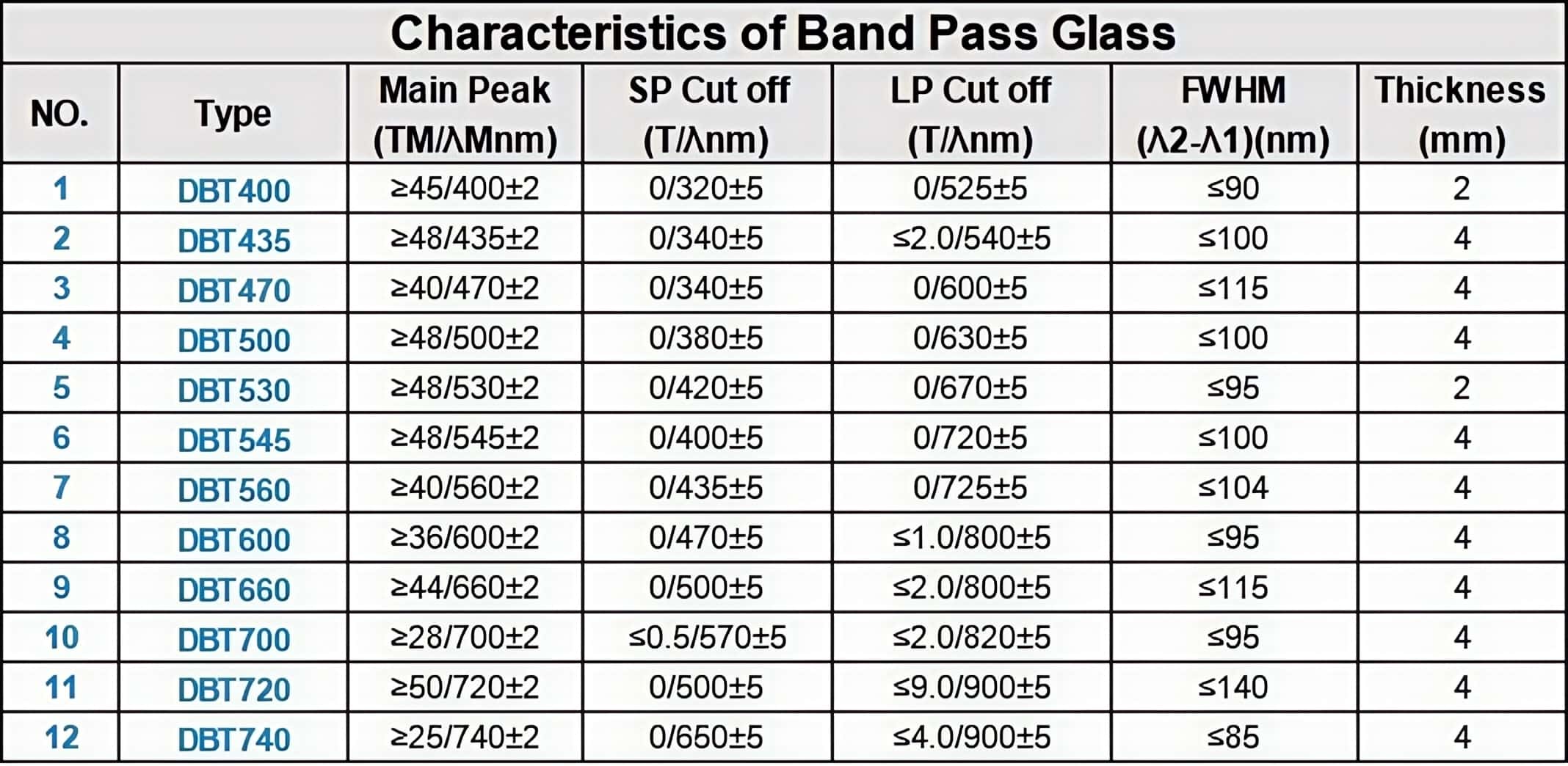

Characteristics Technical Standard Quality Level of Band Pass Selective Absorption Optical Glass Filter
