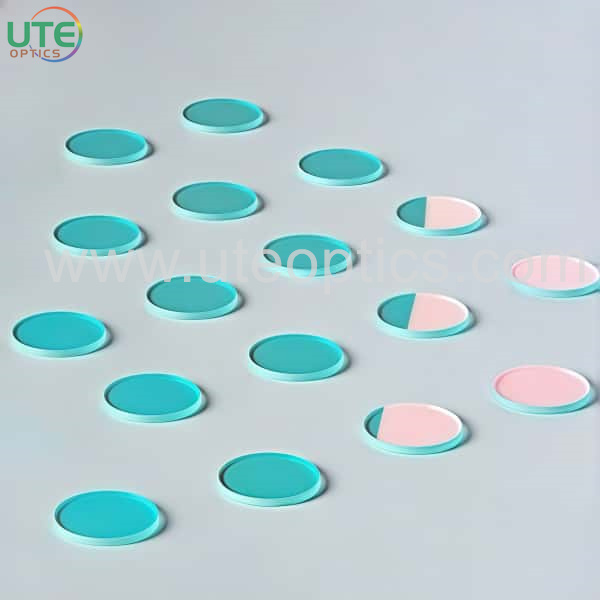

Filters for absorption detection of atmospheric
The main application of atmospheric particulate matter absorption detection filters is the real-time detection of atmospheric particulate matter, the main use of atmospheric particulate matter absorption characteristics, the emission of specific filter bands using differential photoacoustic spectroscopy technology after computer calculations to derive the value of some particulate matter.
| Item | Parameters |
| Product name | Filters for absorption detection of atmospheric particles |
| Model number | BP405 532 650 780 1064 |
| CWL | 1064±0.5nm |
| AOI | 0° |
| FWHM | 25±3nm |
| Transmittance | T＞90% Customized |
| Blocking Rate | >OD3-OD6 UV-NIR |
| Blocking Band | 1000-1100nm Customized |
| Raw material | BK7 D263T JGS1 or other optical glass |
| Surface quality（S/D） | 60/40 or better |
| Dimension | 50.8x50.8x1mm or Customized |
| Thickness | Customized |
Yangzhou UTE Optical Technology Co., We are specialized in manufacturing and supplying optical elements. Optical filter,narrow band optical filter,Long Pass Filter,Short Pass Filter,Band Pass Filter,UV IR Cut Off.etc
